Descriptions
About this item
【Heavy Duty】- This toggle switch is designed for heavy-duty use, with a rating of 30A 12VDC, 20A 125VAC, and 15A 250VAC. It has a two-pole (two-wire contact connection) configuration.
【ON/OFF Switch】- The switch handle is easy to use, allowing for convenient ON/OFF operation. It is a 2-pin SPST marine toggle switch that is waterproof, solid, and durable, and can be used over 100000 times.
【Mounting Bracket】- The toggle switch mounting bracket can be installed in any suitable position for easy switch operation. The hole diameter for the mounting bracket is 12mm (15/32").

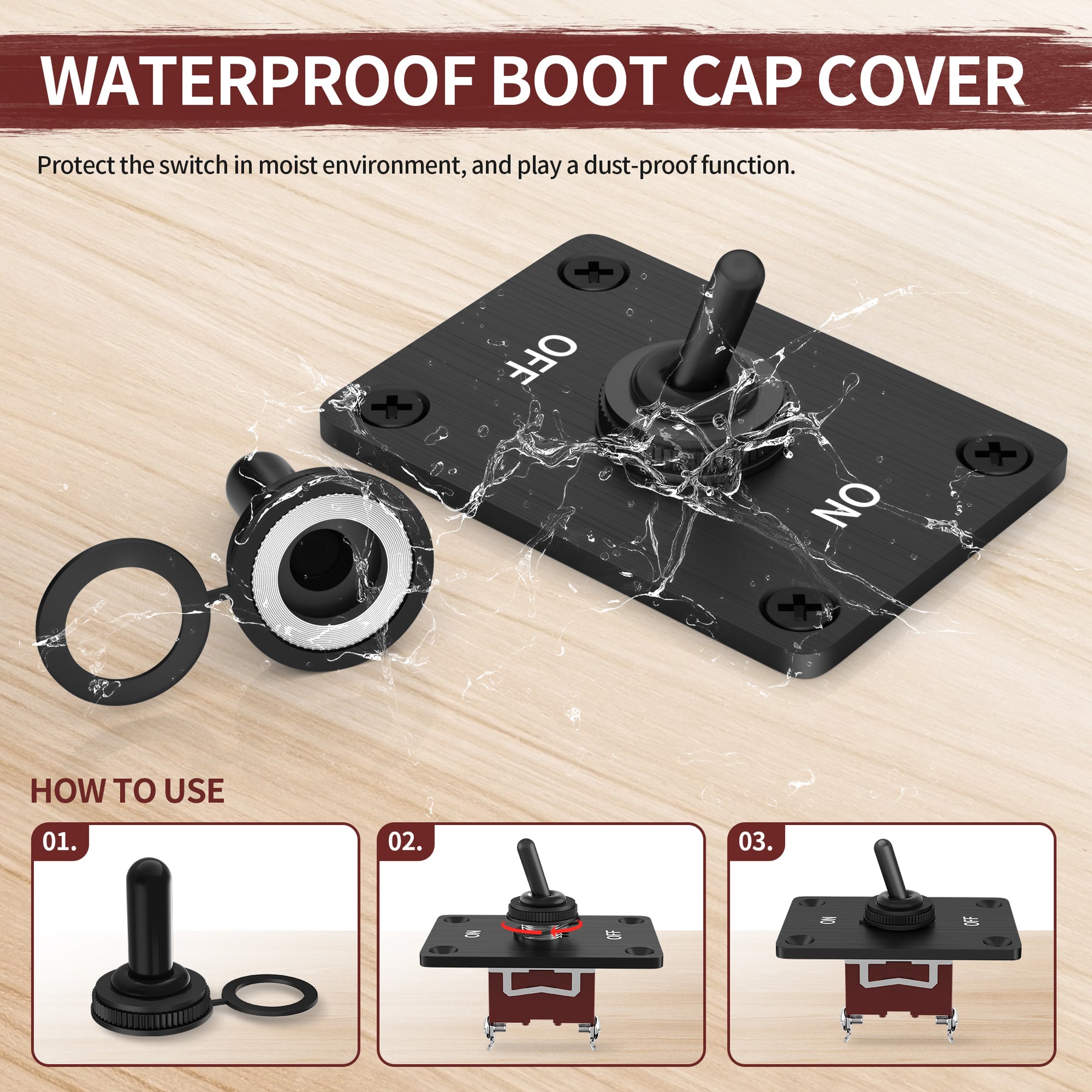

【Waterproof Cap】- Each automotive toggle switch comes with a waterproof boot cap, making it a waterproof toggle switch.
【Wide Application】- This 2-way toggle switch is suitable for use in almost any motorized vehicle, including marine vessels, boats, motorcycles, racing cars, automobiles, recreational vehicles, all-terrain vehicles, trucks, golf carts, and airplanes.
Package Includes
1 x 2 way toggle switch
1 x waterproof boot cap
1 x switch bracket panel
4 x screws
Spec
| Part NO | KN3C-101AA+WPC-06+DS-ONOFF |
| Rating: | 30A 12V DC ; 20A 125VAC ; 15A 250VAC |
| Switch Material: | Bakelite, Metal |
| Contact Material: | Silver |
| Bracket Material: | Aluminum Oxide |
| Panel Cut-Out Size: | 12mm |
| Function: | ON-OFF SPST |
| Terminal: | 2 Pins |
| Connector Type: | Screw Terminal |
| Cover Thread: | M12X0.75mm |
| Cover Color: | Black |
| Contact Resistance: | ≤50mΩ |
| Insulated Resistance: | ≥100MΩ |
| Dielectric Strength: | 1 Minute 1500V AC |
| Operating Temperature: | -25℃~+85℃ |
| Electrical Life: | ≥10,000 Cycles |
