Descriptions
About this item
【Powerful and Durable Linear Motion】- This heavy-duty 12V linear actuator is built for demanding applications. With a robust 3000N (675 lbs) force output and a generous 8-inch (200mm) stroke length, it can effortlessly handle heavy lifting, precise adjustments, and powerful automation tasks. The durable construction ensures long-lasting performance and reliable operation, even under frequent use.
【 Weatherproof and Quiet Operation】- This linear motion actuator is designed to withstand harsh environments thanks to its IP54 waterproof rating. It is protected from dust, debris, and water ingress, ensuring reliable performance both indoors and outdoors. The actuator also operates with minimal noise, emitting less than 50 decibels, making it suitable for noise-sensitive applications.

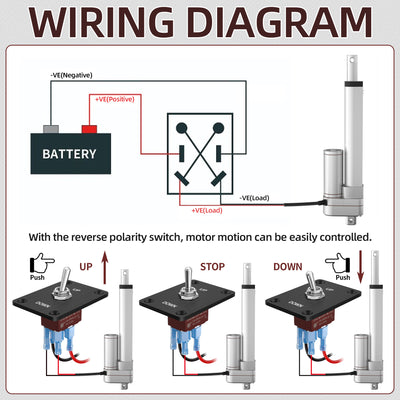

【Precise and Customizable Motion Control】- The included 3-position momentary reverse polarity toggle switch offers precise and flexible control over the actuator's movement. Easily extend or retract the actuator to your desired position. The switch locks the actuator in place upon release, ensuring accurate and secure positioning for a variety of applications.
【Wide Applications for Automation Needs】- This versatile linear actuator is perfect for a wide range of automation projects, including home automation, automotive modifications, medical equipment, and industrial machinery. From automating windows and adjusting furniture to powering lifting systems and solar trackers, this actuator provides reliable linear motion control for diverse applications.
【Complete Kit for Easy Installation】- This 12V linear actuator package includes everything needed for a hassle-free installation. In addition to the actuator and polarity reversing switch, you'll receive a mounting panel for versatile installation options, a waterproof cap for outdoor use, and terminal connectors for simplified wiring.

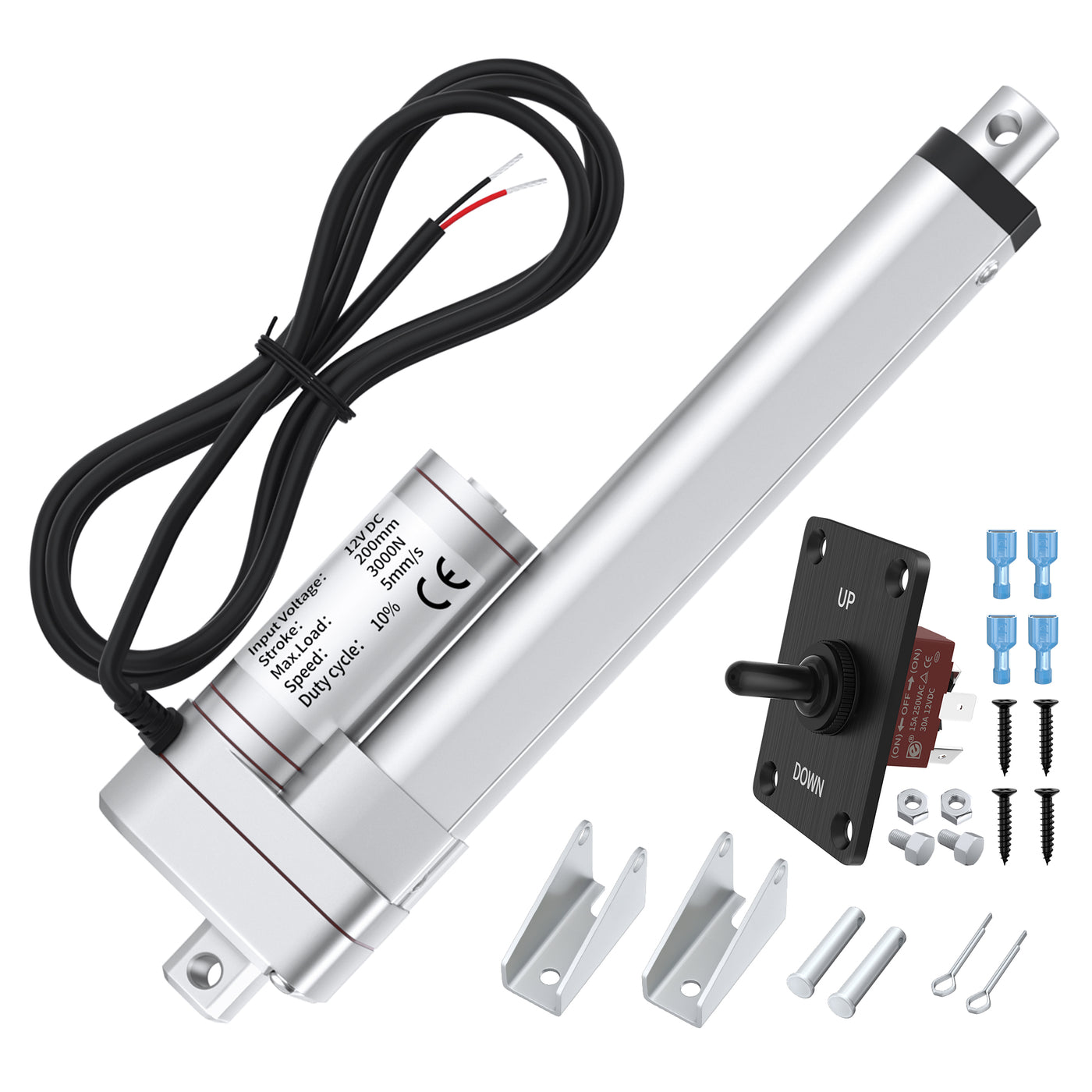

What’s in the package:
1 x 12V Linear Actuator
2 x Mounting Bracket Sets
1 x Momentary Toggle Switch Panel
4 x Insulated Terminals
4x Screws

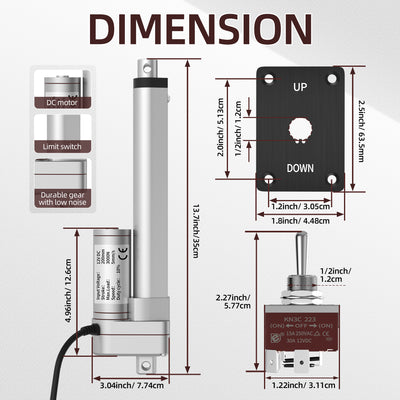

Spec
| Part NO | LA03S-12-A1-330-200-3000N |
| Voltage | 12VDC |
| Stroke | 200mm / 8" |
| Min Length | 330mm |
| Max Length | 530mm |
| Max Load | 3000N / 600lbs |
| Speed | 5mm/s |
| Noise Level | Below 50dB |
| Duty Cycle | 10% |
| Switch Function | (ON)-OFF-(ON) Momentary |
| Switch Terminal | 4 Pins |
